Inventory Number: C2433-1
Rock Systems Portable Pugmill Plant & Single Feed Hopper
Rock Systems model 101-36 receiving hopper for front end loader with 4 wing extensions and 16 ton storage capacity, 14’-6" wide feed opening, heavy duty 36" wide roller belt feeder with 15 h.p. electric motor drive, 4 ply conveyor belting vulcanized endless with 1/4" x 1/16" rubber covers, CEMA "C" 5" diameter rollers mounted on close centers, radial discharge gate to control material flow, full length skirtboards, belt scraper, heavy duty semi-portable support structure with skid frame, variable speed controller.

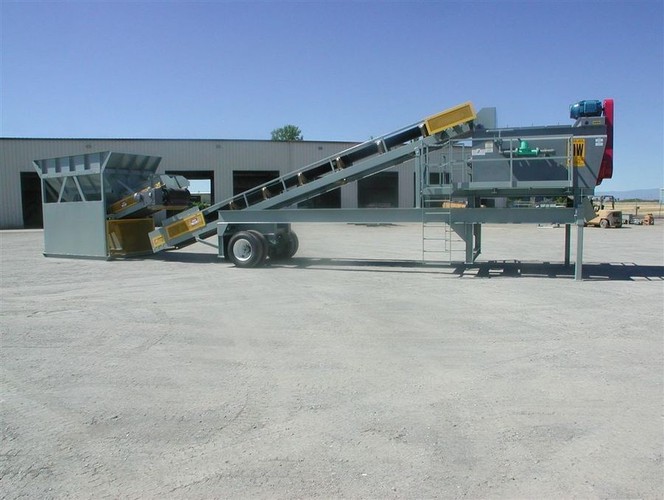

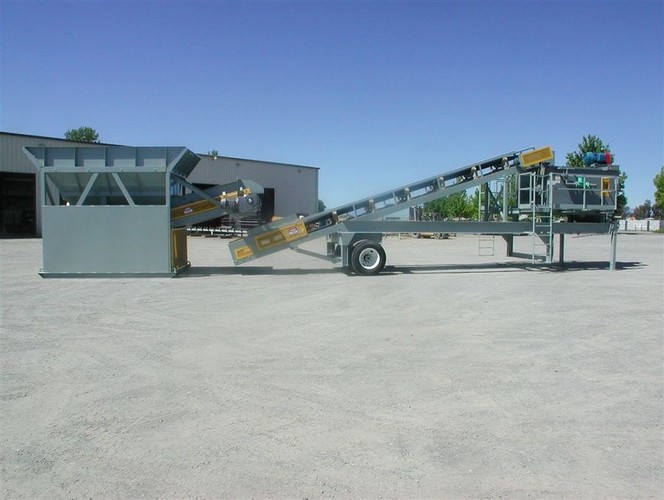

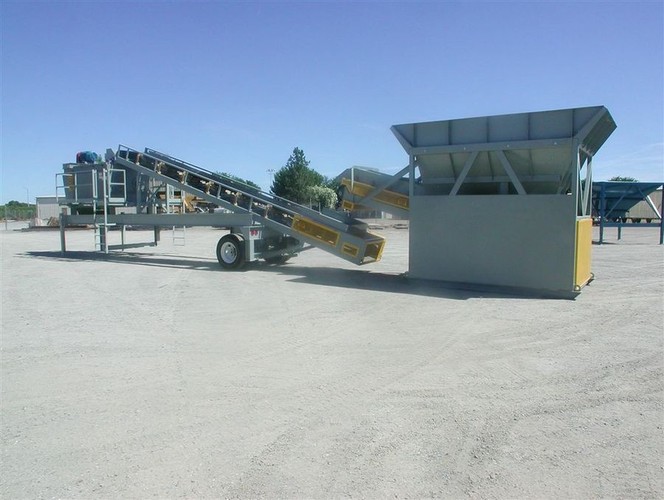

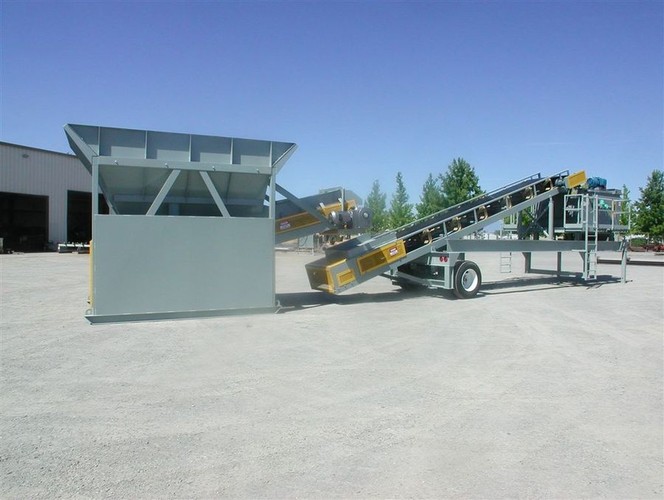

Rock Systems Portable Pugmill Plant, Model 802-RSI with 36" wide x 33' long pugmill feed conveyor with 10 h.p. electric motor drive, 3 ply conveyor belting, Flexco Rockline belt scraper; Eagle Iron Works 36" diameter x 8’-6" long pugmill with 75 h.p. electric motor drive, Ni-Hard paddles, replaceable curved 1/2" thick AR tub liners, receiving hopper, hinged cover over the mixing chamber, spray bar, meter and valve for liquid additive; electric motor control panel pre-wired to the electric motors; all mounted on a single axle chassis with pneumatic tires, air brakes, king pin, rear lighting, mud flaps, blocking pads, pugmill discharge chute, walkway with handrails on both side of pugmill with access ladders.
