Inventory Number: C2433-2

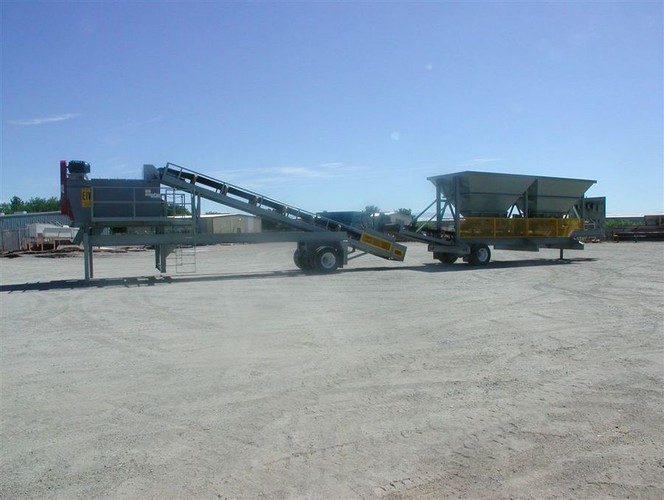

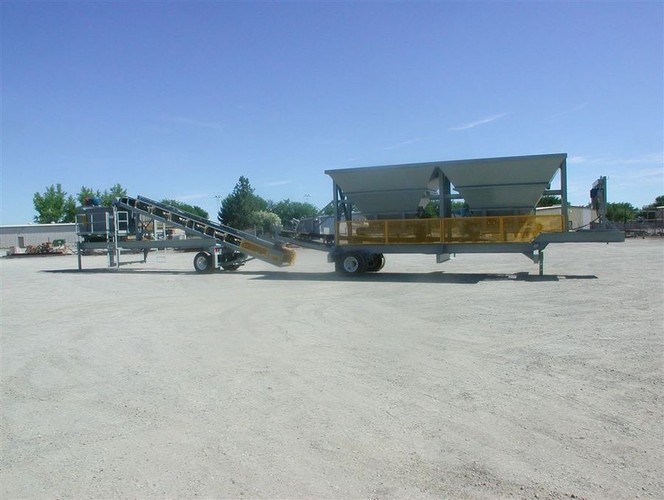

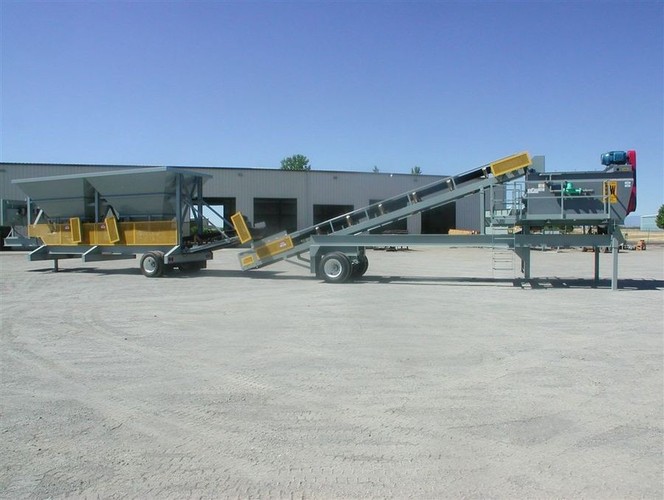

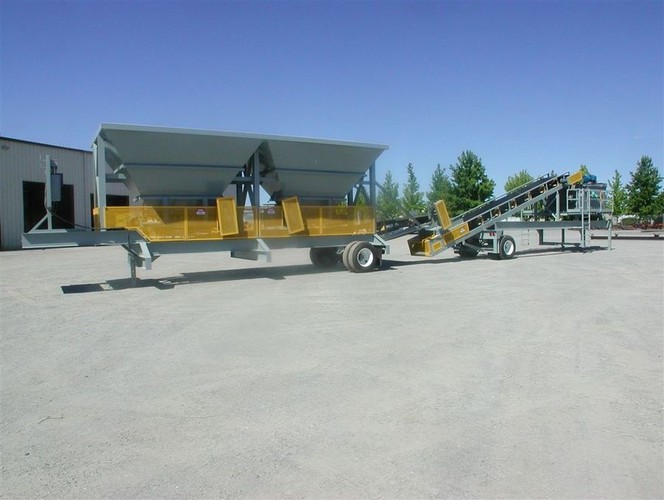

Rock Systems Portable Pugmill Plant & 2 Bin Blending Hopper

Rock Systems portable 2 bin blending hopper complete with 9’-6” wide x 14’ long bins with 20 ton storage capacity each; 30” wide roller belt feeders with 5 h.p. fixed speed electric motor drives, CEMA “C” 5” diameter flat belt idlers, full length skirtboards with REMA rubber, 3 ply vulcanized endless conveyor belting, discharge gate to control material flow; 36” wide collecting conveyor with 10 h.p. electric motor drive, CEMA “C” 35 degree troughing idlers with 5” diameter rolls, 9’-6” long conveyor extension beyond bins; all mounted on a single axle portable chassis with brakes, lights, mud flaps and 5th wheel pin.  Includes electric motor control panel and wiring with variable speed drives for the belt feeders and fixed speed starter for the collecting conveyor.

Rock Systems Portable Pugmill Plant, Model 802-RSI with 36" wide x 33' long pugmill feed conveyor with 10 h.p. electric motor drive, 3 ply conveyor belting, Flexco Rockline belt scraper; Eagle Iron Works 36" diameter x 8’-6" long pugmill with 75 h.p. electric motor drive, Ni-Hard paddles, replaceable curved 1/2" thick AR tub liners, receiving hopper, hinged cover over the mixing chamber, spray bar, meter and valve for liquid additive; electric motor control panel pre-wired to the electric motors; all mounted on a single axle chassis with pneumatic tires, air brakes, king pin, rear lighting, mud flaps, blocking pads, pugmill discharge chute, walkway with handrails on both side of pugmill with access ladders.
