Inventory Number: C2516

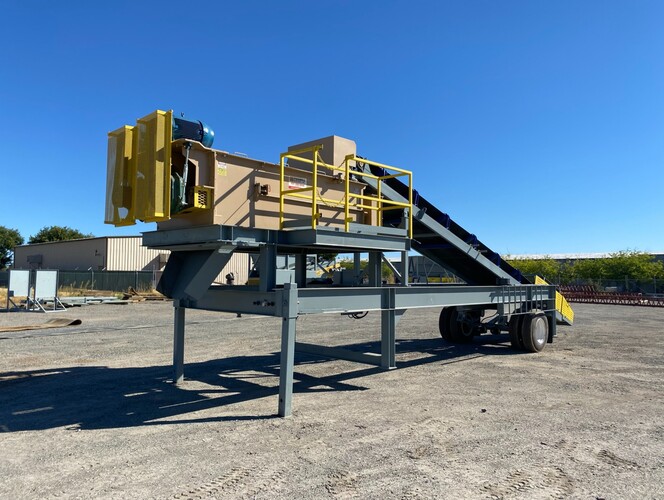

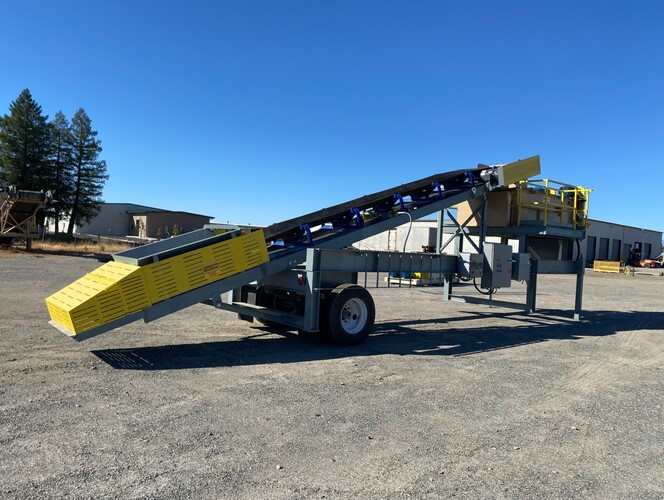

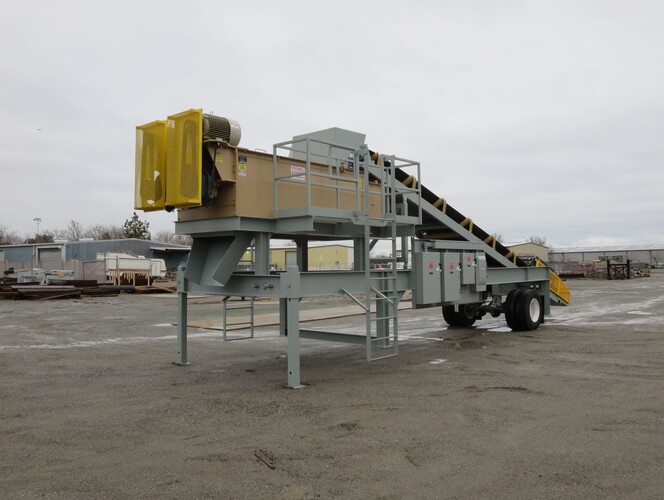

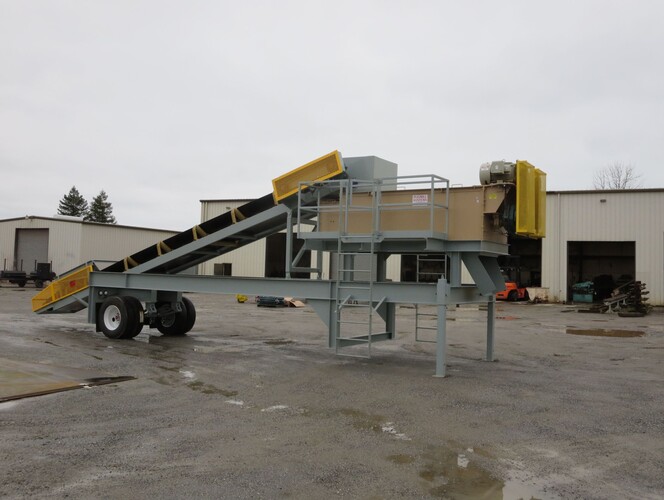

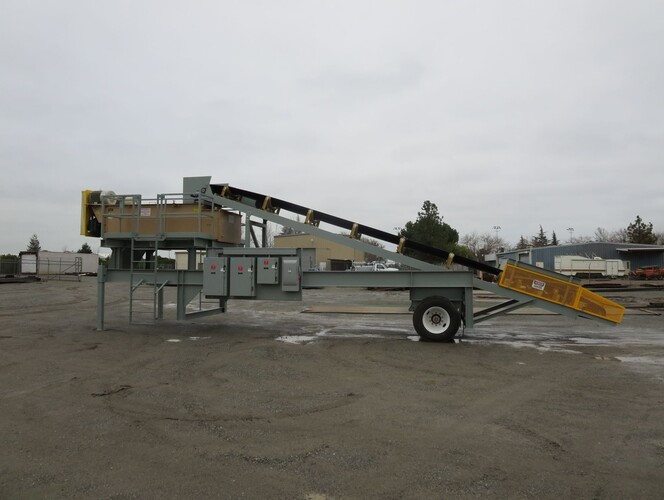

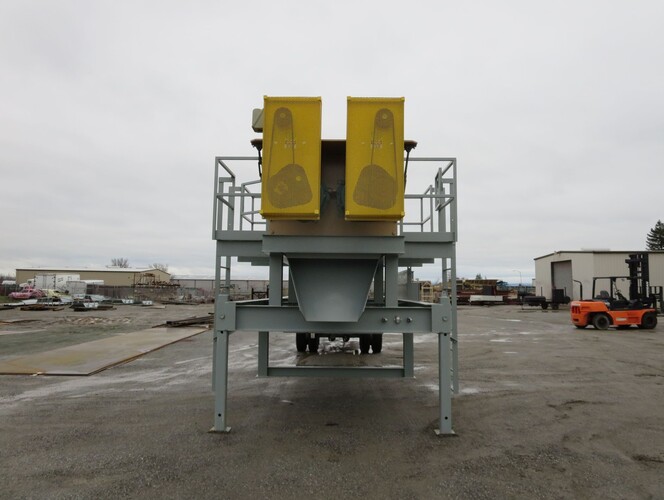

Rock Systems Portable Pugmill Plant, Model 802-RSI complete as follows:

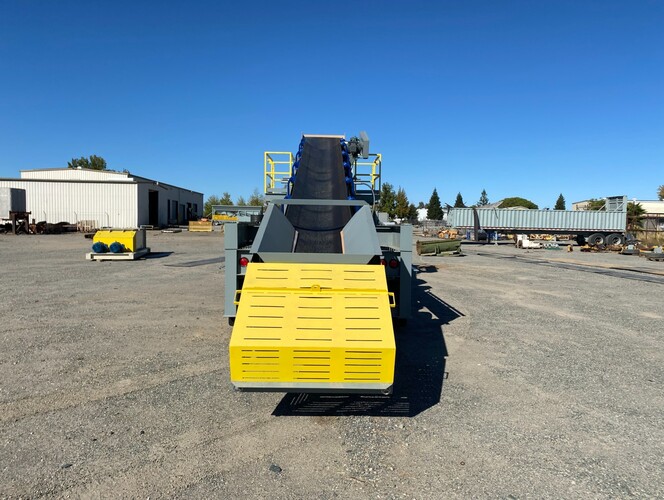

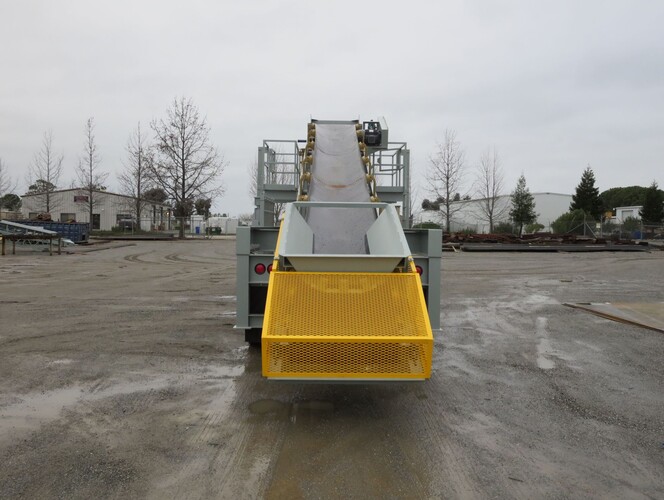

a. 36" wide x 33' long pugmill feed conveyor with 15 h.p. electric motor, Dodge TXT4 shaft mount speed reducer with internal backstop, v-belt drive and OSHA drive guard; 14" diameter rubber lagged head pulley; 12" diameter self-cleaning tail pulley; screw take-up assemblies; OSHA tail terminal guard; CEMA "C" troughing and return idlers with 5" diameter rolls; 3 ply conveyor belting; Flexco Rockline belt scraper installed.

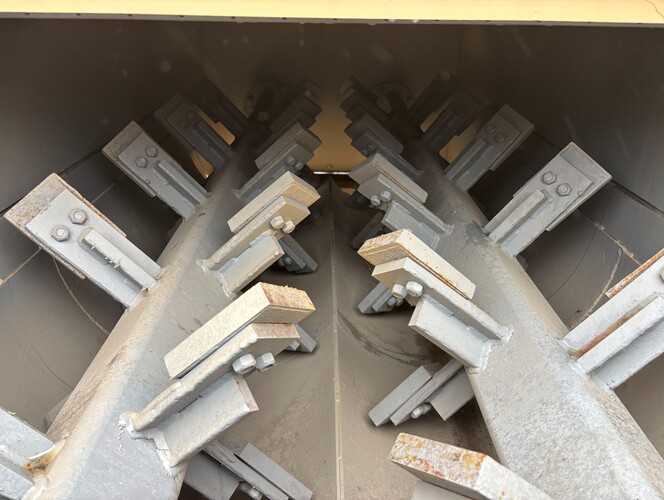

b. Pugmill Systems timed twin shaft pugmill mixer model 750BT with dual 50 Hp electric motor drives, timing gears, liquid additive spray bar, access covers on pugmill, reversible hi-chrome paddle tips, contour AR liners. Excludes liquid additive pump or meter.


c. Portable trailer with single axle chassis and dual 11 x 22.5 tires, air brakes, king pin, rear lighting, mud flaps and blocking pads; pugmill discharge chute; walkway with handrails on both sides of pugmill with access ladders.


d. One rust inhibitor prime coat and one finish coat gray paint for all equipment.


e. Electric motor control panel with starters for all above electric motors pre-wired to each electric motor.
