Model 407-2P Portable Rip-Rap Plant

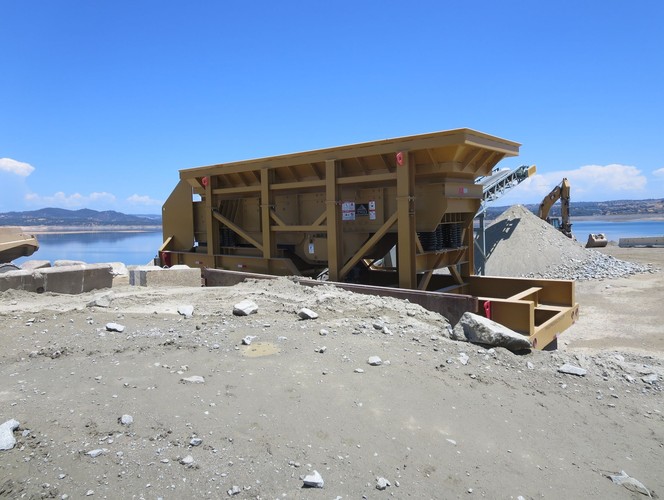

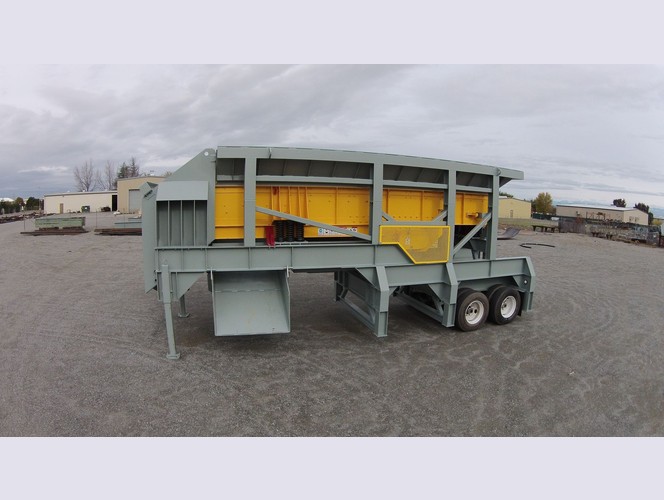

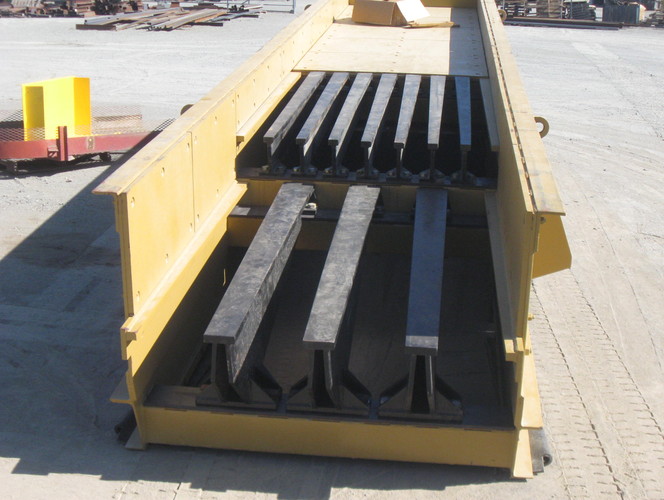

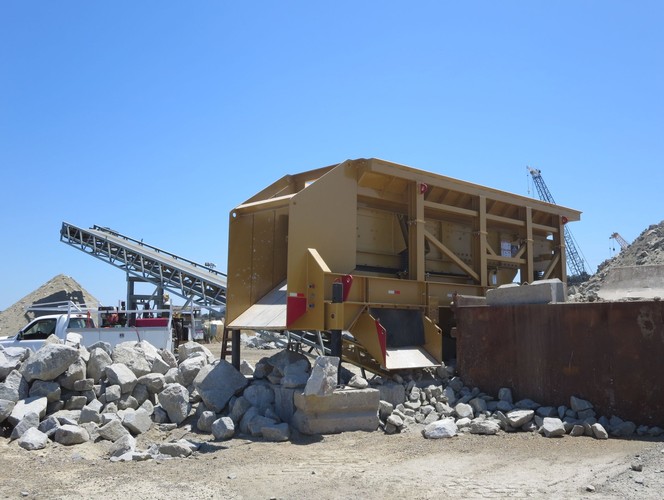

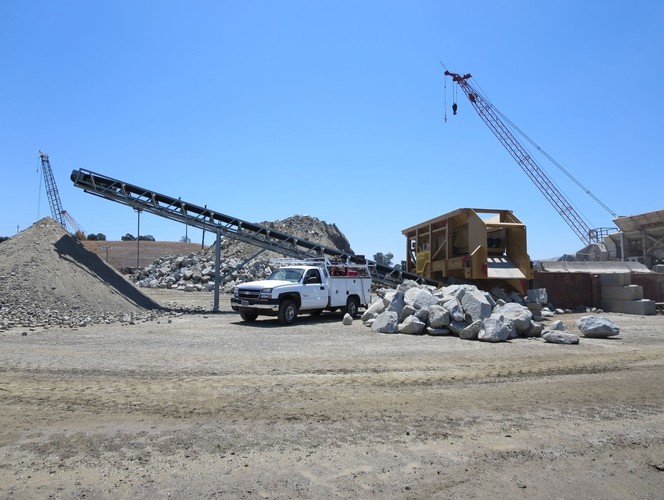

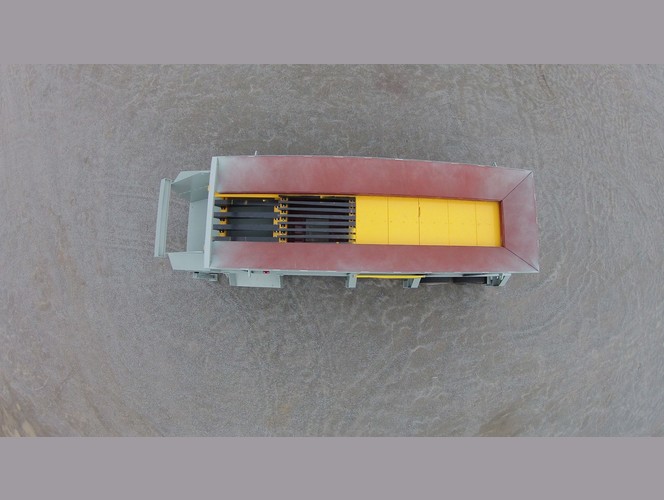

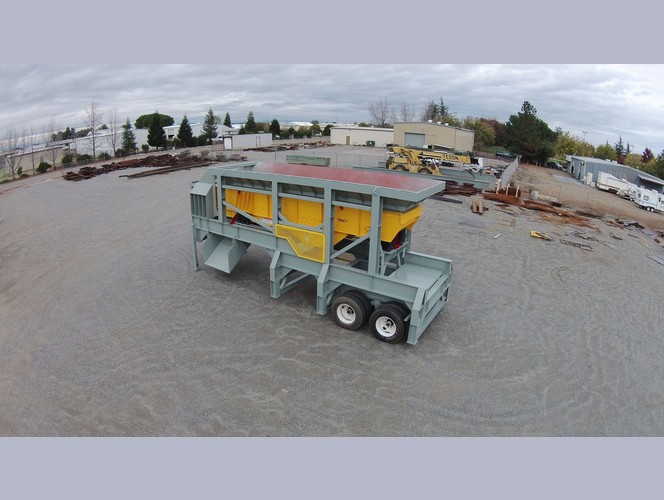

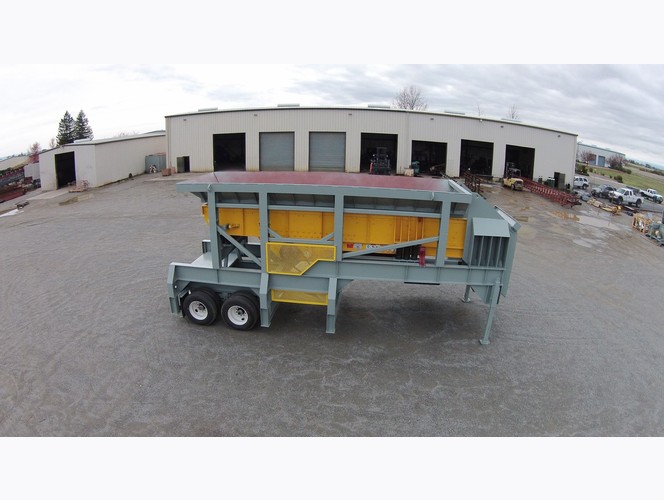

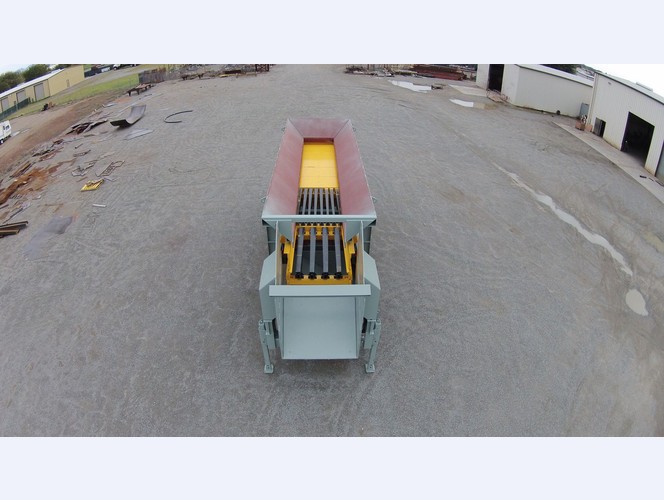

Rock Systems Model 407-2P Portable Rip-Rap Plant to separate 3 products complete with heavy duty feed hopper constructed of 3/4” thick steel plate with reinforcing and AR liners; Trio model TF5224-2 52” wide x 24’ long vibrating grizzly feeder with 50 h.p. electric motor drive, 12’ long solid pan and twin 6’ long grizzly sections with adjustable grizzly bars; collecting hopper mounted under the 1st grizzly section to bypass the fines onto an optional side discharge conveyor; heavy duty side discharge chute with AR liners mounted under the 2nd grizzly section to bypass the middle product to grade; oversize discharge chute with AR liners to pass the material going over both grizzly sections to grade; tandem axle portable chassis; fixed speed electric motor control panel.
