Inventory Number: 506-36100

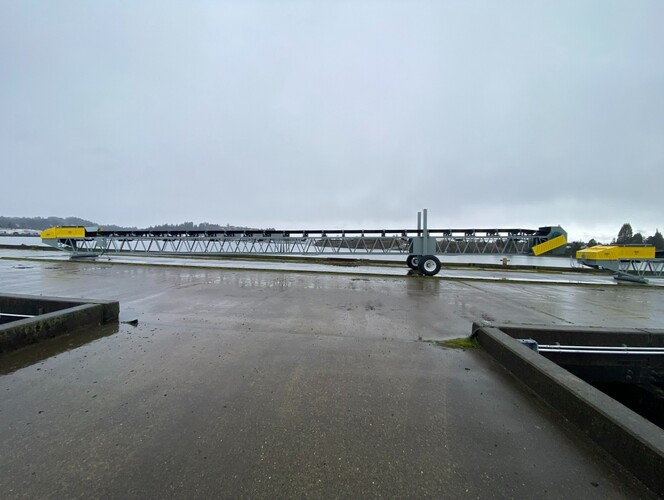

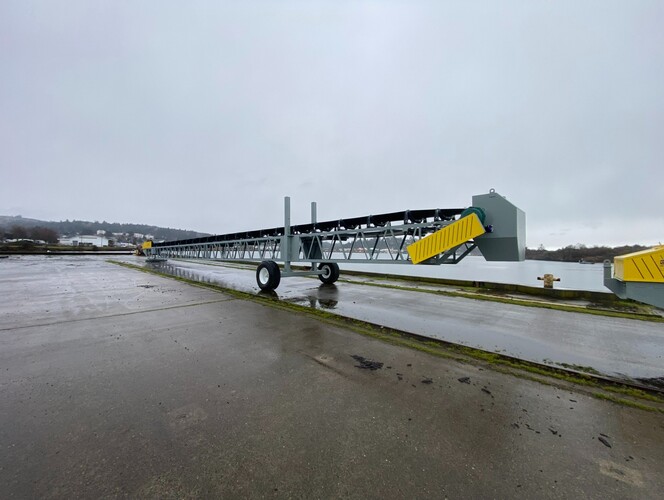

Rock Systems 36" wide x 100' long Portable Field Conveyor, Model 506-36100 complete as follows:

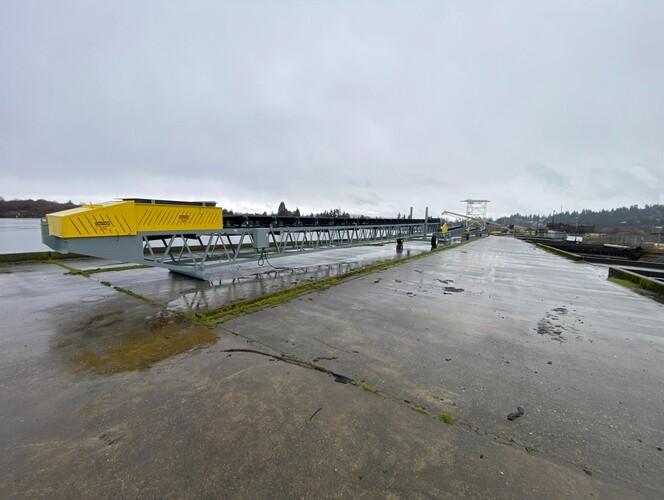

a) Head terminal includes Weg 30 h.p. TEFC electric motor; Dodge shaft mount speed reducer with internal backstop; v-belt drive and OSHA drive guard; Dodge 18" diameter rubber lagged head pulley mounted on 3-7/16" diameter 1045TGP shafting with Dodge SCM pillow block bearings.

b) Tail terminal includes Dodge 16" diameter self-cleaning tail pulley mounted on 2-7/16" diameter 1045TGP shafting with Dodge SCM pillow block bearings and screw take-up assemblies; OSHA approved tail terminal guard.

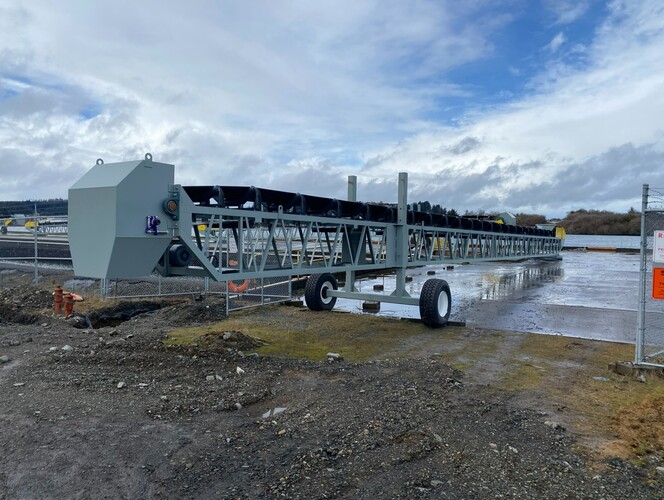

c) Rock box receiving hopper bolted to tail terminal complete with skirtboards and rubber flashing.

d) Conveyor truss frame 42" deep with 4" x 3" x 1/4" top and bottom chord angles, 2" x 2" x 1/4" side lattice bracing, 1-1/2" x 1-1/2" x 1/4" top and bottom lattice bracing.

e) 3 ply conveyor belting with 3/16" top rubber cover and 1/16" bottom rubber cover, 330# working tension.

f) Conveyor troughing idlers, CEMA "C", 35 degree deep trough with 5" diameter rolls mounted on 4' centers; troughing idlers CEMA "C", 20 degree deep trough with 5" diameter rolls mounted on close centers at the load point and one at the head pulley; return idlers CEMA "C" with 5" diameter rolls mounted on 10' centers.

g) Fixed height conveyor undercarriage with single axle.

h) Tow hitch.

i) One rust inhibitor prime coat and one finish coat gray paint for all equipment; one finish coat safety yellow paint for all guarding.

j) Options available include adjustable height undercarriage, folding head section, and highway tow package.

k) Other widths and lengths available.
