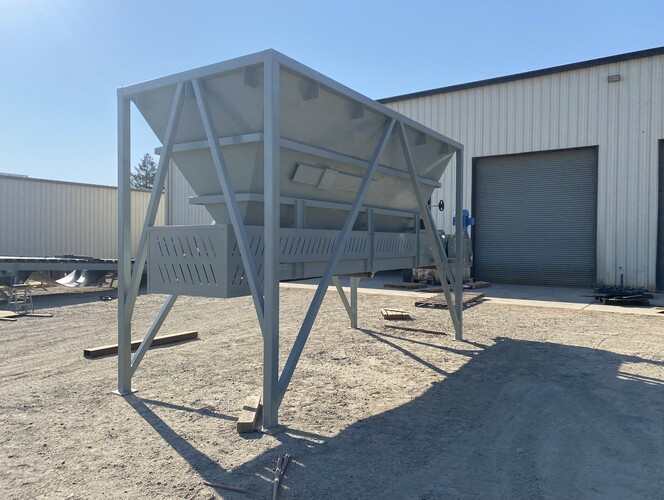

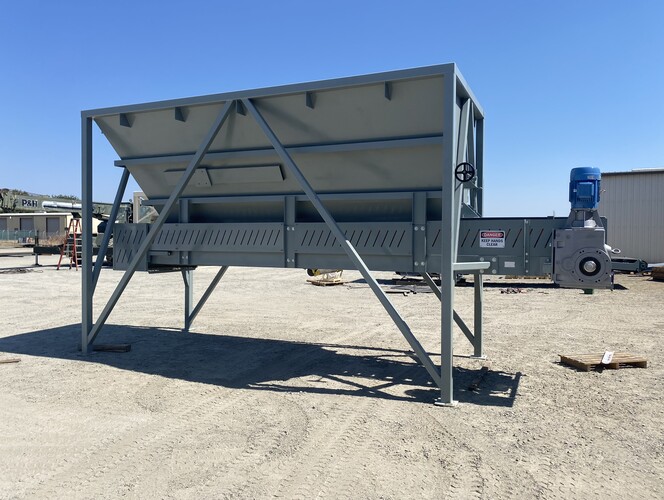

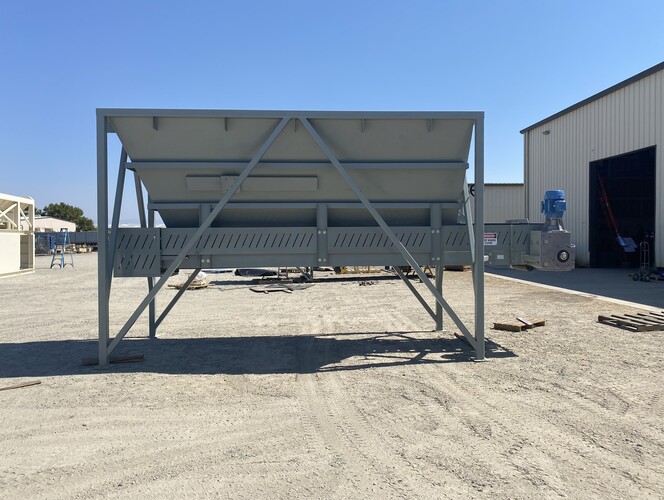

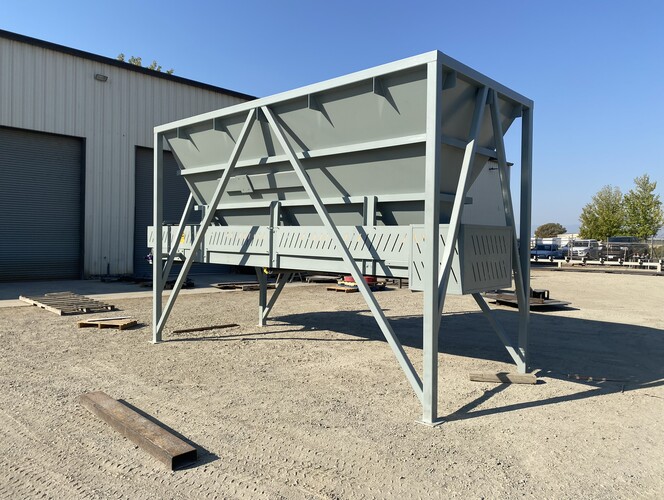

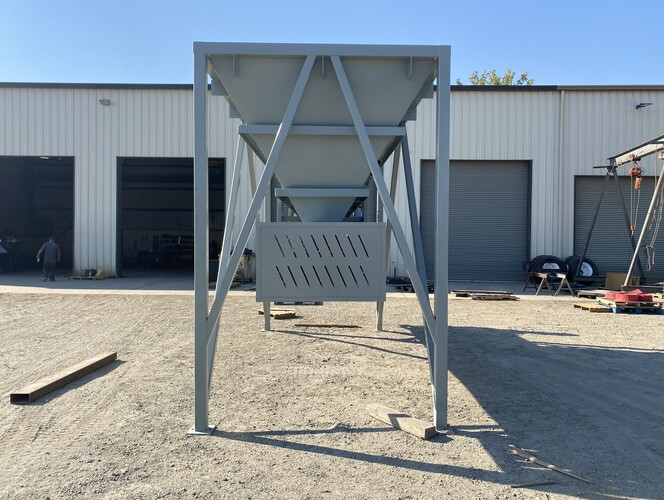

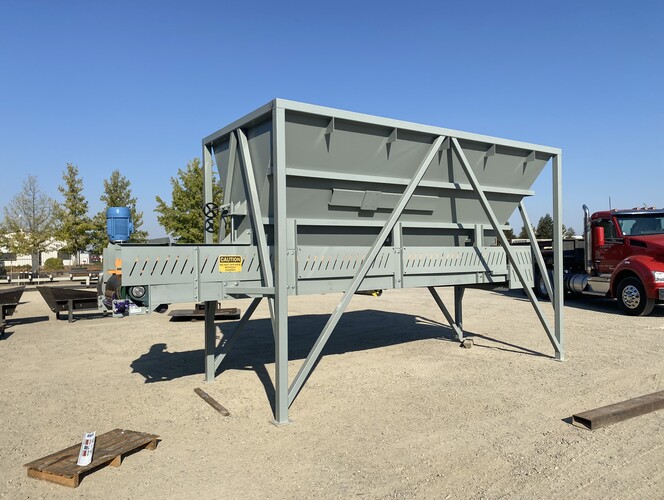

Model 101-24 Front End Loader Hopper with 24" Belt Feeder

1 each - Rock Systems Model 101-24 feed hopper with belt feeder complete as follows:

a.  6’-7" wide x 16’ long hopper opening constructed from 1/4” thick steel plate with square tube reinforcing at the hopper top and angle iron reinforcing at the hopper mid-section and bottom section; self-relieving tapered hopper bottom opening to minimize bridging; full length skirtboards with 3/4" x 6" adjustable rubber flashing to prevent leakage between hopper bottom and belt feeder; adjustable discharge gate with hand crank out the side to control material flow from the hopper; includes 2 bin vibrator mounts.

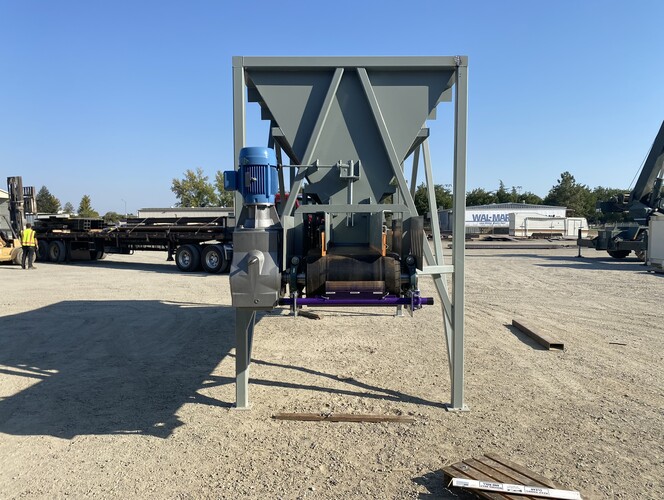

b.  24" wide x 19’-5” long belt feeder with fixed speed 7.5 h.p. electric motor, Nord helical bevel gearbox; 12" diameter rubber lagged head pulley mounted on Dodge 2-15/16" SCM pillow block bearings; 12" diameter self-cleaning tail pulley mounted on Dodge 2-3/16" SCM pillow block bearings; screw take-up assemblies; tail terminal guard and side nip guards; CEMA "C" flat belt idlers with 5" diameter rolls mounted on close centers; CEMA "C" return idler; 3 ply vulcanized endless conveyor belting with 3/16" x 1/16" rubber covers. Belt speed setup for 53 fpm.

c.  Steel fabricated structure constructed of square tubing and 1/2” thick base plates.

d.  One rust inhibitor prime coat and one finish coat gray enamel paint for all equipment; one finish coat safety yellow enamel paint for all guarding.

e.  Electric motor control panel with main disconnect and variable speed drive.
